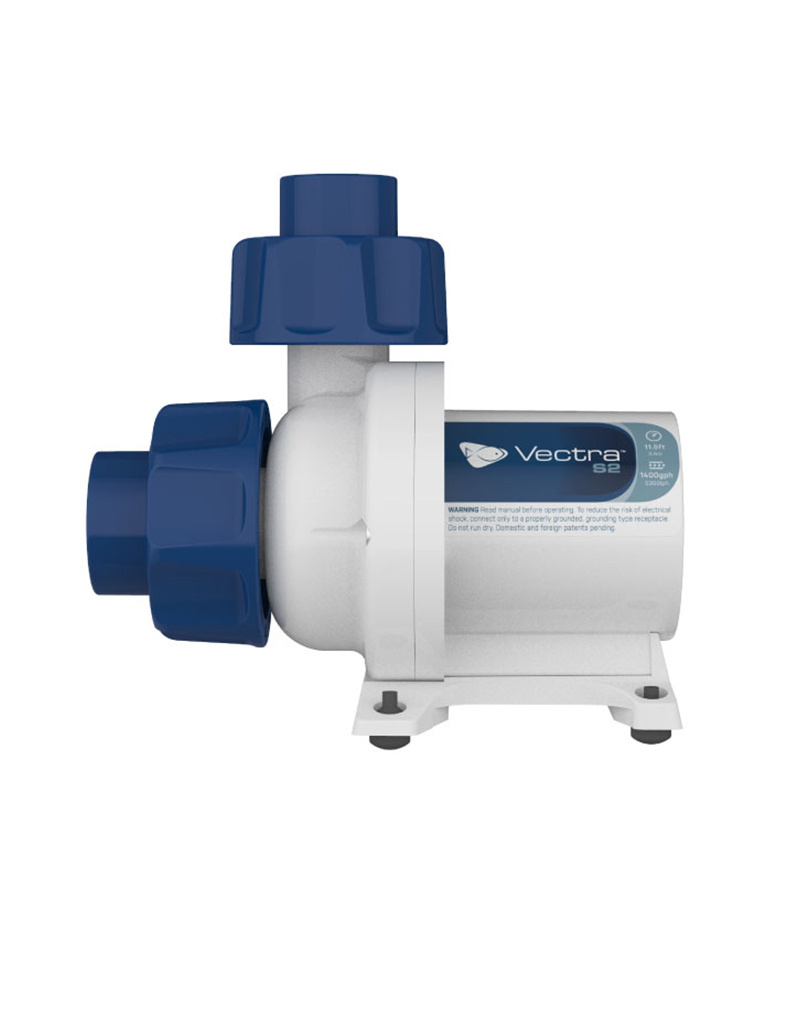

Vectra S2 Return Pump

SKU: VEC-S2

EcoTech Marine has set new standards for the equipment in saltwater aquariums. The Vectra is no exception. The world’s smartest return pump can be run on a schedule, wirelessly give you updates on the operation, and be automatically configured to work with your specific aquarium setup.

  • Flow: 1,400 gph (5,300 lph)
  • Wireless: Included
  • Max Head Pressure: 11.5 feet (3.5 m)
  • Footprint: 3.8 in. x 6.5 in. (98.4mm x 165.4mm)
  • Fittings: Input: 1 in. (25 mm) Output: .75 in (19mm)
Categories: , , ,
Flexible Installation

Included with the Vectra Pump are QuickCouple components, these fitted couplers provide the flexibility to make installation, cleaning and adjustments a breeze. The Vectra also boasts the ability to rotate the volute of the pump to adapt to the needs of your plumbing setup.

– Easy Connection
– Fast Setup
– Quick Disassembly
– British Standard Pipe Threading

The Vectra Advantage

Traditional AC pumps, when used as a return pump for your sump, are flow controlled through the use of a choke valve. This method of control is inherently inefficient for two reasons.

The AC pump purchased must often be overpowered for your given setup to allow for flexibility. By adding artificial impedance to your flow, electricity is wasted. The Vectra pump will always operate at the optimum efficiency because there is no need to use a flow restricting valve to achieve your desired flow rate.

Vectra Modes
Return Pump Modes
CONSTANT SPEED
Constant Speed mode is the default mode of the Vectra, this makes the pump produce flow at a constant speed that is determined by the position of the dial.
FEED MODE
At the touch of a button the Vectra pump will temporarily pause the current mode and idle allowing food to be added to the tank without being cycled into the overflow and filtration.
SPEED LOCK
Speed Lock gives you the ability to lock in a desired speed on the pump by disabling the control dial protecting you from accidental and not so accidental unwanted changes in speed.
Closed Loop Modes
LAGOONAL RANDOM
Lagoonal Random mode simulates a low-energy lagoon environment. The speed of the pump is changed slowly to recreate the gentle currents of a lagoon.
REEF CREST RANDOM
Reef Crest Random mode simulates a high-energy reef environment. The pump will change speed frequently and drastically to simulate crashing waves and surging tide. This is a favorite of SPS coral.
GYRE
Gyre mode creates a flow pattern consisting of uniform clockwise and counterclockwise flow levels pulsing at a selected interval between two seconds and two hours.
Flow

1,400 gph (5,300 lph)
Max Head Pressure

11.5 feet (3.5 m)
Footprint

3.8 in. x 6.5 in. (98.4mm x 165.4mm)
